White 14.2mm (0.56") 7 Segment LED Display Common Cathode for Digital Indicator

Shenzhen Guangzhibao Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

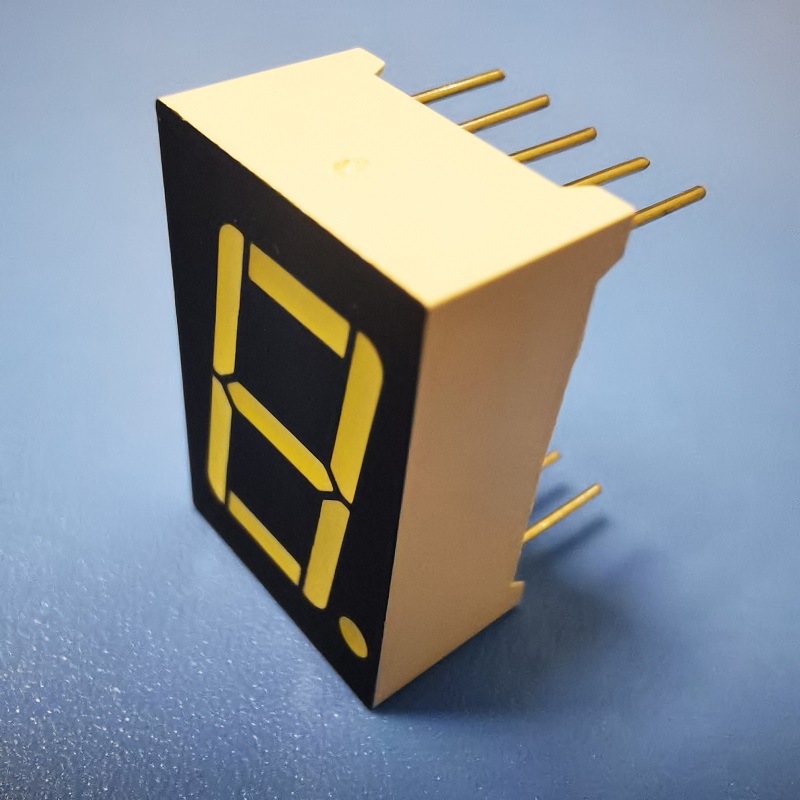

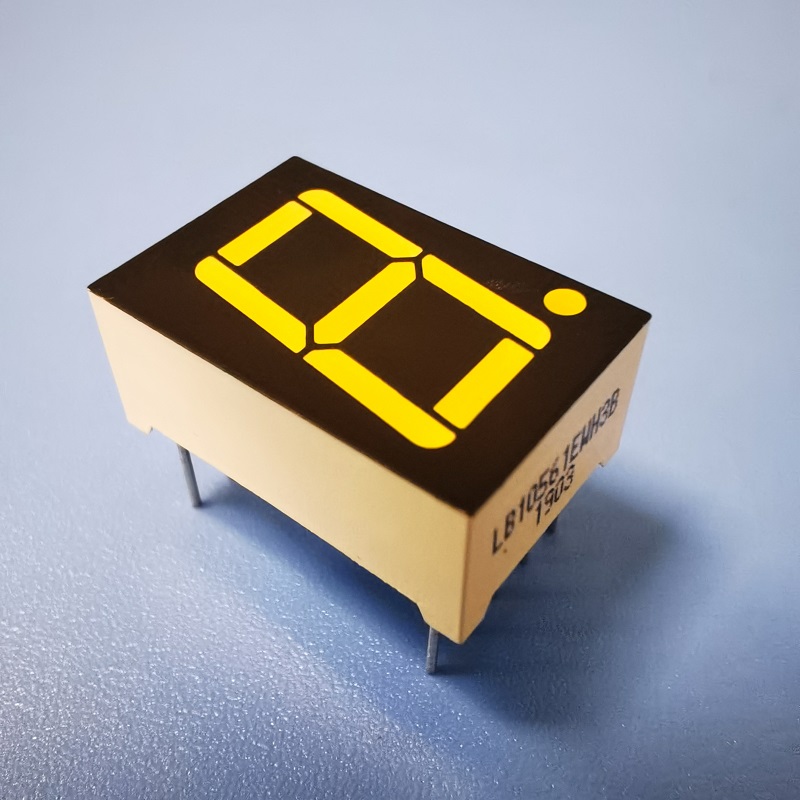

White 14.2mm (0.56") 7 Segment LED Display Common Cathode for Digital Indicator

  • 1
  • 2
  • 3

Brand Name : LIGHT-BO

Model Number : LB10561EWH3B-D

Certification : ISO9001&RoHS

Place of Origin : Shenzhen,china

MOQ : 1000PCS

Price : Negotiate

Payment Terms : T/T, Western Union

Supply Ability : 50000pcs/days

Delivery Time : 15-20days

Packaging Details : EPE+carton

Polatity : Common Cathode

Package Type : DIP, SMD

Operating Temperature : -40 to 85°C

Life time : 80,000 Hours

OEM : Yes

Application : home appliances

Contact Now

Applications:

Audio equipments or instrument panels

Home electronic appliances

Numeric displays

Multimedia products

General use for digital indicators,temperature indiators, humidity indicators,process indicators,and so on



Code:Ultra Bright White -WH

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 2.8   3.2 V
Reverse Voltage Vr Ir=10uA 5     V
Luminous Intensty Iv If=10mA 120   140 mcd
LED color Temperature K If=10mA 5500 20 6800 K
Chromaticity Coordinates X/Y If=10mA 0.29,0.32   0.30,0.33 nm

Code:Yellow Green- J

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8   2.4 V
Reverse Voltage Vr Ir=10uA 5     V
Luminous Intensty Iv If=10mA 30   40 mcd
Spectrum With Of Half Value △λ If=10mA   20   nm
Wavelength If=10mA 569   574 nm

Code:Amber/Yellow -Y

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8   2.5 V
Reverse Voltage Vr Ir=10uA 5     V
Luminous Intensty Iv If=10mA 60   80 mcd
Spectrum With Of Half Value △λ If=10mA   20   nm
Wavelength If=10mA 585   595 nm

Absolute Maximum Ratings(Ta=25ºC)

Parameter Symbol Ratings Unit
Forward Current(per dice) Ipm 20 mA
Reverse Voltage(per dice) Vr 5 V
Power Dissipation(per dice) Pm 80 mW
Operating Temperature Range Topr -40~+85 ºC
Storage Temperature Range Tstg -40~+85 ºC
Solder Temperature(≤3 seconds) Th 260 ºC



FAQ

Q: Are you trading company or manufacturer?
A: We are original manufacturer. We can do OEM/ODM business.Our company mainly produces Segment LED Displays.

Q: How long is your delivery time?
A: Delivery time:About 15-20 days; According to order quantity.
Q: What is your terms of payment?
A: T/T,Western Union,Paypal with small amount.

Q: How can I get your catalogue and price list?

A: Please let us know your email or contact us from website directly for our catalogue and price list.

Q: Can I negotiate the prices?

A: Yes, we may consider discounts for multiple container load of mixed goods.

Q: How much will the shipping charges be?

A: It depends on the size of your shipment and the method of shipping.

We will offer the charge to you as you requested.

Q: May I have some samples for testing?

A: Yes,we can provide 5-10pcs free samples in your delivery cost.

White 14.2mm (0.56") 7 Segment LED Display Common Cathode for Digital Indicator

White 14.2mm (0.56") 7 Segment LED Display Common Cathode for Digital Indicator
