Customized blue 3-digit 7-segment refrigerator controller
Product Descripition
| Digit number | 3 digit | 2digits,3digits, 4digits,5digits,6 digits |
| Color | Ultra Bright Blue | White, blue,pure green, yellow-green, orange,etc. |
| Size | 28.6*28.6*9MM | Other size are supported |
| Polarity | Common cathode | Common Cathode |
| Life span | 80000hours | |
| Free Samples | supported | |
| Lead time for sample | 5-7 working days | Tooling samples are 15-20 working days |
| Lead time for formal order | 15-20 working days | According to order quantity |
| OEM&ODM | Support | Based on customer's drawing or idea |
| LOGO printing | Support | Based on customer's drawing or idea |
| MOQ | 1000PCS | Can accept 100-500pcs for first order |
Code:Yellow Green- J/JU
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | | 2.4 | V |
| Reverse Voltage | Vr | Ir=10uA | 5 | | | V |
| Luminous Intensty | Iv | If=10mA | 30 | | 40 | mcd |
| Spectrum With Of Half Value | △λ | If=10mA | | 20 | | nm |
| Wavelength | Dλ | If=10mA | 569 | | 573 | nm |
Code:Amber/Yellow -Y
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | | 2.4 | V |
| Reverse Voltage | Vr | Ir=10uA | 5 | | | V |
| Luminous Intensty | Iv | If=10mA | 50 | | 60 | mcd |
| Spectrum With Of Half Value | △λ | If=10mA | | 20 | | nm |
| Wavelength | Dλ | If=10mA | 585 | | 595 | nm |
Code:Orange -F
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | | 2.4 | V |
| Reverse Voltage | Vr | Ir=10uA | 5 | | | V |
| Luminous Intensty | Iv | If=10mA | 50 | | 60 | mcd |
| Spectrum With Of Half Value | △λ | If=10mA | | 20 | | nm |
| Wavelength | Dλ | If=10mA | 600 | | 605 | nm |
Code:Super Bright Red -R
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | | 2.2 | V |
| Reverse Voltage | Vr | Ir=10uA | 5 | | | V |
| Luminous Intensty | Iv | If=10mA | 50 | | 60 | mcd |
| Spectrum With Of Half Value | △λ | If=10mA | | 20 | | nm |
| Wavelength | Dλ | If=10mA | 630 | | 635 | nm |
Code:Ultra Bright Red -UR
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | | 2.2 | V |
| Reverse Voltage | Vr | Ir=10uA | 5 | | | V |
| Luminous Intensty | Iv | If=10mA | 90 | | 100 | mcd |
| Spectrum With Of Half Value | △λ | If=10mA | | 20 | | nm |
| Wavelength | Dλ | If=10mA | 620 | | 625 | nm |
Code:Ultra Bright Blue -BH
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 2.6 | | 3.0 | V |
| Reverse Voltage | Vr | Ir=10uA | 5 | | | V |
| Luminous Intensty | Iv | If=10mA | 100 | | 120 | mcd |
| Spectrum With Of Half Value | △λ | If=10mA | | 20 | | nm |
| Wavelength | Dλ | If=10mA | 460 | | 470 | nm |
Absolute Maximum Ratings(Ta=25℃)
| Parameter | Symbol | Ratings | Unit |
| Forward Current(per dice) | Ipm | 20 | mA |
| Reverse Voltage(per dice) | Vr | 5 | V |
| Power Dissipation(per dice) | Pm | 80 | mW |
| Operating Temperature Range | Topr | -40~+120 | ℃ |
| Storage Temperature Range | Tstg | -40~+120 | ℃ |
| Solder Temperature(3 sec) | Th | 260 | ℃ |
Product Feature
High-contrast white segments on black background
Ultra-high luminous intensity output
Energy-efficient low current operation
Exceptional performance stability
Seamless continuous uniform segments
Simplified PCB mounting design
Full IC compatibility
RoHS compliant environmentally friendly
Applications:
Audio & Instrumentation Panels - Clear visibility for volume levels, frequency indicators, and control interfaces.
Digital Indicators - Ideal for numeric readouts in industrial, commercial, and consumer electronics.
Multimedia & Entertainment Devices - Used in display panels for audio systems, kiosks, and gaming machines.
Financial Displays - Real-time currency exchange rate boards in banks and financial institutions.
Timekeeping Solutions - LED clocks, timers, and digital watches with high readability.
Automotive & Fuel Stations - Pump displays, price indicators, and vehicle dashboard readouts.
Industrial & Machinery Interfaces - Equipment status monitors, measurement tools, and control systems.
|
|

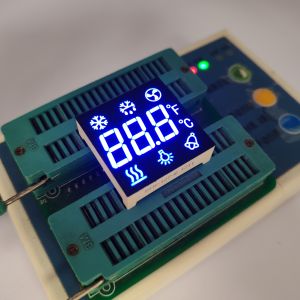

Customized blue 3-digit 7-segment refrigerator controller Images
|
