0.8 Inch 4 Digit Seven Segment Led Display Ultra Bright Blue Stable Performance

Name: 08 Inch 4 Digit Seven Segment Led Display Ultra Bright Blue Stable Performance
Brand: LIGHTBO
Price: 1 USD

Buy cheap 0.8 Inch 4 Digit Seven Segment Led Display Ultra Bright Blue Stable Performance product

Brand Name : LIGHTBO

Model Number : LB40802EBH1B

Certification : RoHS&SGS&ISO

Place of Origin : Shenzhen,China

MOQ : 1000PCS

Price : Negotiable

Payment Terms : TT in advance& Western Union

Supply Ability : 50000PCS/Day

Delivery Time : 10-15Days

Packaging Details : EPE+CARTON

Package dimensions : 71.6 x 25.8 x 7.4 mm

Character height : 20.4mm (0.8 inch)

Colour : Ultra bright blue

Contact Now

0.8 Inch 4 Digit Seven Segment Display Ultra Bright Blue Stable Performance

Product descriptions:
Package dimensions: 71.6 x 25.8 x 7.4 mm
Character height: 20.4mm (0.8 inch)
Colour: Ultra bright blue
Emitting colour: red, yellow, green, blue, orange and white

Product features:
High luminous intensity
Low power consumption
Extremely low current
Stable performance
Continuous uniform segments
Easy mounting on PC boards
Long lifetime
Meet RoHS compliant

Absolute Maximum Ratings(Ta=25℃)

Parameter	Symbol	Ratings	Unit
Forward Current(per dice)	Ipm	20	mA
Reverse Voltage(per dice)	Vr	5	V
Power Dissipation(per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40～+85	℃
Storage Temperature Range	Tstg	-40～+85	℃
Solder Temperature(3 sec)	Th	260	℃

Code:W-Ultra Bright Blue
Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage(Per dice)	Vf	If=20mA	2.8		3.5	V
Reverse Voltage(Per dice)	Vr	Ir=10uA	30			V
Luminous Intensty(Per dice)	Iv	If=20mA	100		120	mcd
Spectrum With Of Half Value	△λ	If=20mA		30		nm
Wavelength	Dλ	If=20mA	460		465	nm
LED working lifetime 100,000hrs Absolute Maximum Rating at Ta=25℃

Applications:
Home appliances, instrument panels, digital clock indicators and so on.

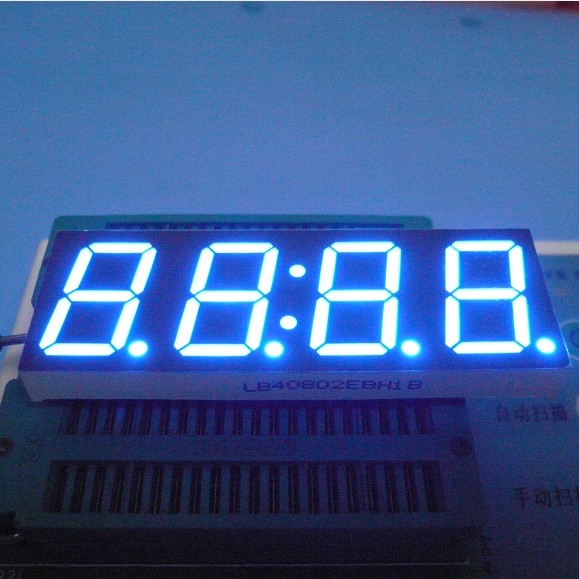

Product Pictures:

Product Tags:

common anode 7 segment display

common cathode seven segment display

0.8 Inch 4 Digit Seven Segment Led Display Ultra Bright Blue Stable Performance Images
