7mm 8 Digit 7 Segment Led Display OEM ultra white pure green Color

Name: 7mm 8 Digit 7 Segment Led Display OEM ultra white pure green Color
Brand: LIGHTBO
Price: 1 USD

Buy cheap 7mm 8 Digit 7 Segment Led Display OEM ultra white pure green Color product

Brand Name : LIGHTBO

Model Number : LB2238LBG1C

Certification : RoHS&SGS&ISO

Place of Origin : Shenzhen,China

MOQ : 1000PCS

Price : negotiable

Payment Terms : TT in advance& Western Union

Supply Ability : 50000PCS/Day

Delivery Time : 10-15Days

Packaging Details : EPE+CARTON

Digit height : 7mm (0.28")

Packing size : 22*38*7mm

Polarity : Common cathode

Color : White/pure green

Contact Now

7mm 8 Digit 7 Segment Display OEM ultra white pure green Color

Product Descriptions:

Digital height: 7mm (0.28")
Packing size: 22*38*7mm
Polarity:Common cathode
Colors: red, blue, green, amber, orange, white and yellow

Product Features:

RoHS Directive-compliant
High luminous intensity output
High-efficiency
Low power consumption
Extremely low current
Luminous evenly distributed on each segment
Stable performance
Easy assembly
IC Compatible
Long lifespan
OEM and ODM orders are accepted

Applications:

Widely used in set-top boxes,home appliances and instrument panels,clock displays,digital timers,and numeric displays.

Why choose us?

1. Your inquiry related to our products will be replied in 24 hours.
2. Experienced staffs to answer your inquiries in fluent English.
3. Providing OEM and ODM service for more than 10 years.
4. Protection of your sales area, ideas of design and all your private information.
5. No matter big order or small order, we will serve you with best quality and best service.
6. Advanced equipment and good materials: ASM machine, excellent chips and epoxy resin.
7. If you become our VIP,you will enjoy more preferential policy.
8. If our products have any problem , we will send free in the next order if it is our mistake.

Absolute Maximum Ratings(Ta=25℃)

Parameter	Symbol	Ratings	Unit
Forward Current(per dice)	Ipm	20	mA
Reverse Voltage(per dice)	Vr	5	V
Power Dissipation(per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40～+85	℃
Storage Temperature Range	Tstg	-40～+85	℃
Solder Temperature(3 sec)	Th	260	℃

Code:W-Ultra Bright White

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage(Per dice)	Vf	If=20mA	2.8		3.5	V
Reverse Voltage(Per dice)	Vr	Ir=40uA		5		V
Luminous Intensty(Per dice)	Iv	If=20mA	100		120	mcd
Chromaticity Coordinates	X	If=20mA	0.29		0.33	nm
Chromaticity Coordinates	Y	If=20mA	0.29		0.33	nm
Peak Forward Current(Per dice)1/10 Duty Cycle,0.1ms Pulse	Ifp	100				mA
Operating Temperature Range	Torp	-35℃～+85℃
Storage Temperature Range	Tstg	-35℃～+85℃
SolderTemperature 1.5mm below seating plane for 3 Seconds at 260℃
Absolute Maximum Rating at Ta=25℃

Code:G-Pure Green

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage(Per dice)	Vf	If=20mA	2.8		3.5	V
Reverse Voltage(Per dice)	Vr	Ir=10uA		5		V
Luminous Intensty(Per dice)	Iv	If=20mA	120		140	mcd
Spectrum With Of Half Value	△	If=20mA		22		nm
Wavelength	D	If=20mA	520		525	nm
Peak Forward Current(Per dice)1/10 Duty Cycle,0.1ms Pulse	Ifp	100				mA
Operating Temperature Range	Torp	-35℃～+85℃
Storage Temperature Range	Tstg	-35℃～+85℃
SolderTemperature 1.5mm below seating plane for 3 Seconds at 260℃
Absolute Maximum Rating at Ta=25℃

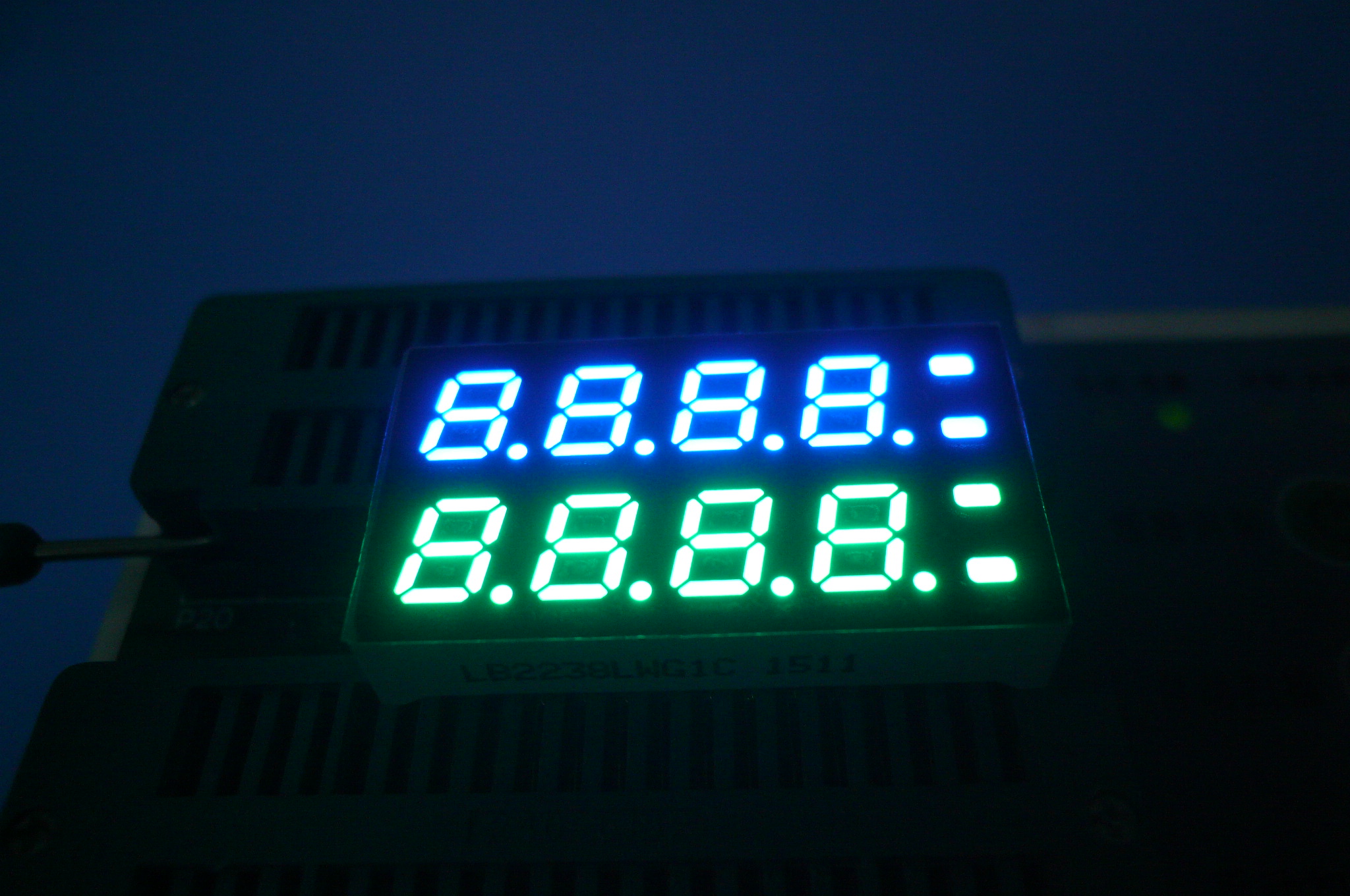

Product Pictures:

7mm 8 Digit 7 Segment Led Display OEM ultra white pure green Color
